Gear Review: The Panasonic AK-UCX100 – The Future of 4K Live Production and CCU-Less IP Workflows
For years, the architecture of high-end studio environments remained stubbornly static. You had a camera head on the floor, a massive umbilical cable, and a dedicated Camera Control Unit (CCU) racking up space in a machine room somewhere down the hall.
But as live broadcast, virtual production, and hybrid IP environments merge, that old-school blueprint is becoming a bottleneck.

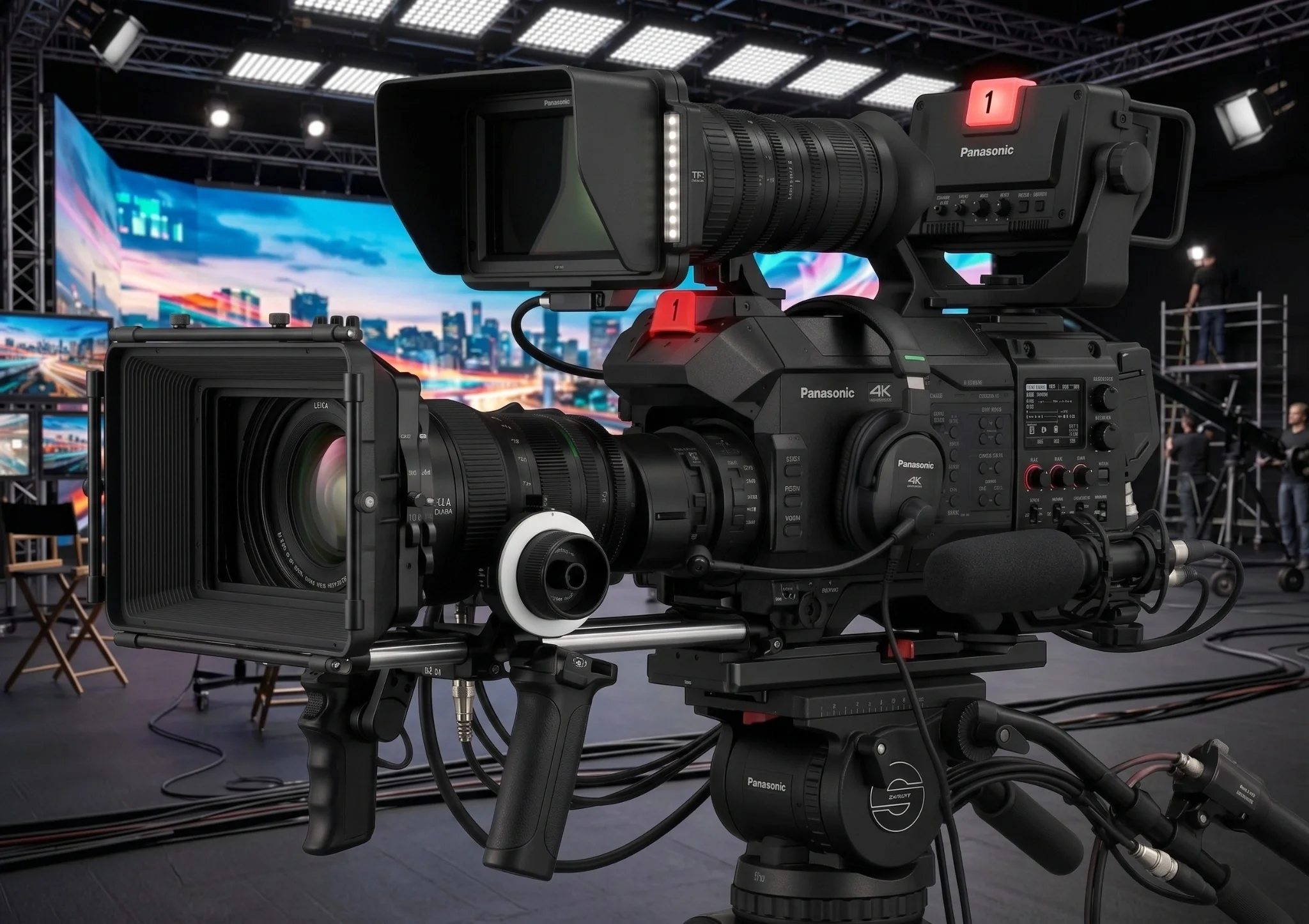

Panasonic’s response? The Panasonic Lumix AK-UCX100 4K Studio Camera. Showcased with massive acclaim at NAB 2026, this camera isn't just an incremental spec bump. It is a fundamental rethinking of how a 4K broadcast camera integrates into modern, IP-driven production ecosystems.
The Headline: World’s First Built-In Autofocus in a 2/3" Studio Head
Let's address the most game-changing update first. Via Panasonic’s latest firmware, the AK-UCX100 is the first traditional 2/3-type studio camera on the market to feature built-in Phase Detection Autofocus (PDAF).
Historically, autofocus was a dirty word in broadcast and live event tracking; contrast-based systems hunted too much, risking ruined shots on live air. Panasonic changed the narrative by baking image-plane phase detection directly into the camera head.
How it Works: The system features an AF Area Select function (allowing operators to slice the frame into target zones) and real-time tracking speed adjustments.
The Workflow Advantage: It gives technical operators a high-precision Focus Indicator and visual Focus Guide icons right in the viewfinder. Operators can use it to perfectly lock onto fast-moving talent during live stages, or instantly override it with manual fine-tuning without breaking the shot.
Core Specifications: The Live Production Powerhouse
| Feature | Performance Capability |
|---|---|
| Sensor & Oversampling | 19.29 MP MOS Sensor producing 2,000 TV Lines (TVL) resolution |
| Sensitivity & Noise | F10 (at 2000 lux) with a blistering ≥62 dB signal-to-noise ratio |
| Color & Dynamic Range | Simultaneous output of HDR/HLG (BT.2020) and SDR (BT.709) |
| High-Speed Frame Rates | Up to 2x in UHD 4K (120p) and up to 4x in HD (240p) |
| Native IP Formats | SMPTE ST 2110, NDI® High Bandwidth, SRT |
| Physical Connections | Dual 12G-SDI outputs, dual SFP28 slots (for 4K network redundancy) |
Deep-Dive: Why the AK-UCX100 is a Virtual Production Dream
For modern facilities diving deep into XR (Extended Reality) and virtual spaces, three features make the AK-UCX100 an absolute standout:
1. True CCU-Less Operation
The AK-UCX100 can completely eliminate the CCU. Because all heavy-lifting video processing happens inside the camera head, you can pipe video, audio, and control signals directly out of the camera using standard IP networking.
By utilizing its Tag VLAN architecture, a single fiber or network line splits the multiplexed signals into clean, dedicated lanes. If you are managing multiple virtual sets or studio spaces from a centralized control room, you can scale your studio footprint without buying stacks of expensive proprietary base stations.
2. Built-In Moiré Reduction for LED Walls
Shooting against fine-pitch LED volumes or massive background displays frequently results in harsh moiré patterns. Panasonic solved this by offering an optional HD optical low-pass filter (OLPF) that drops directly into the FX filter wheel slot. It elegantly softens the aliasing artifacts caused by LED pixel pitches, delivering pristine skin tones and sharp foreground talent without destroying image clarity.
3. Flawless Color Ecosystem Matching
In multi-cam environments, consistency is everything. Using Panasonic's updated Media Production Suite and Remote Operation Panels (ROP), the AK-UCX100 color-matches seamlessly with Panasonic’s high-end PTZ lineup (like the AW-UE160) and its new box-style companion, the AK-UBX100.
[ AK-UCX100 Studio Head ]
|
-------------------------------------------------
| | |
[ Baseband ] [ IP Era ] [ Fiber Optic ]
Dual 12G-SDI SMPTE ST 2110 / NDI / SRT AK-CFA100 Adaptor
The Verdict: A Bridge to the IP Future
The Panasonic AK-UCX100 is designed for production companies that refuse to be trapped by legacy hardware limitations. By delivering 2,000 TV lines of oversampled 4K clarity, pioneering high-precision PDAF, and enabling a purely software-driven, CCU-less IP workflow, Panasonic has built a studio camera that is actively prepared for the next decade of live entertainment and digital cinematography.
Whether you are capturing fast-paced sports at 4K 120p or tracking talent inside an XR virtual environment, the UCX100 proves that the future of the studio space is lighter, smarter, and completely interconnected.
